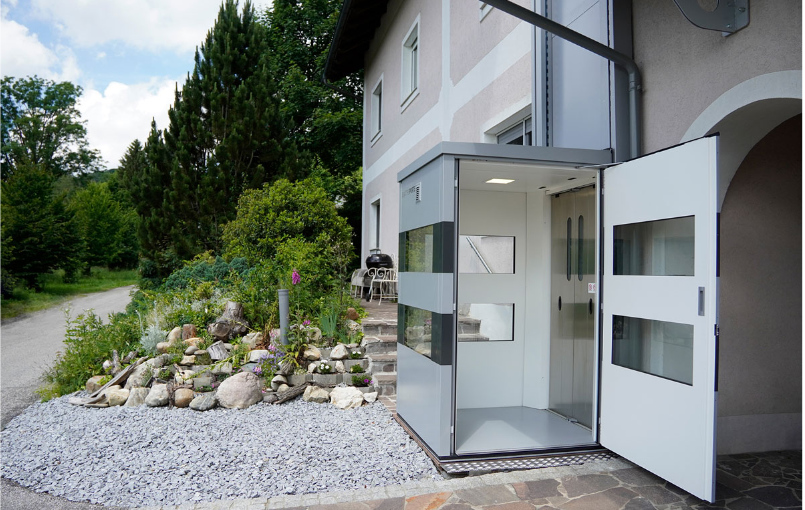

- Cabin with walls or doors on 3 sides
- Fourth side facing the building as a sliding wall
- Grab handle with integrated controls
- Emergency telephone and emergency stop switch
- Contact switch in the platform floor and in the ceiling
- Non-slip platform floor
- Colors: Standard metallic silver (similar to RAL 9006), optionally all RAL colors
- Sturdy steel/aluminium lightweight construction, load-bearing components made of galvanized steel
- Overall width: 1430 mm, overall depth: 1488/1288 mm, overall height: conveyor height + 2550 mm
- Usable platform base area: 1250 x 1250 mm or 1250 x 1050 mm, cabin height: 2000 mm
- Clearance: cabin door: 1050/950 mm, clearance on building side door: 812 mm
- Max. Lifting height: 13 m
- Stops: 2-6
- Load capacity: 275 kg, speed: 15 cm/sec. | 9 m/min
- Shaft pit not required, low access height of 60 mm, integrated access ramp
- Lockable fixed remote controls, key access for restricted persons
- Active control for version without folding door, automatic operation for version with folding door
- Installation directly on the outside wall of the building, also on fully insulated façades
- Galvanized C-rails, rollers on cabin
- Drive: 2 chains, deflected at the upper end of the guide rail, door drives optional
- Drive unit: 2 electric motors with worm gears
- Noise level below 63 dB
- Power supply: 230 V, fuse protection 16A
- Safety catch via catch hook in guide rail
- TÜV Austria EC type examination in accordance with EU Machinery Directive, CE marking
