Stand

by Jenx

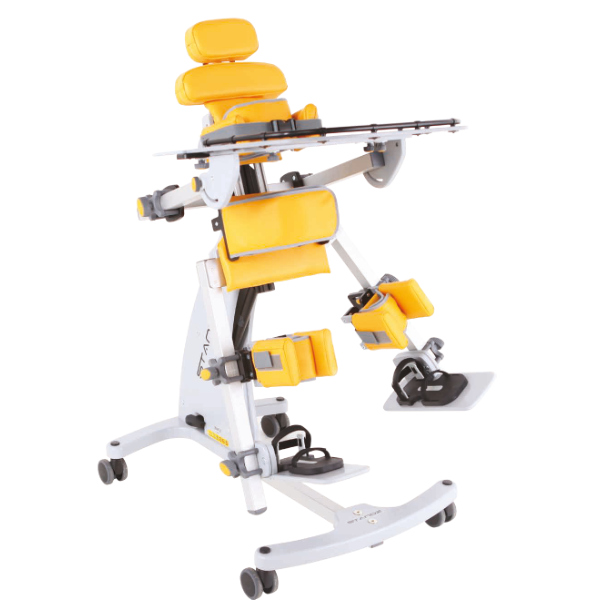

Standz: Abduction Stander

A versatile standing system that allows for both lying and upright standing, providing abducted or neutral leg positioning for children aged 1 to 9 years. Inspired by the clinical benefits of abducted standing and developed in collaboration with therapists and caregivers worldwide, it guarantees the perfect combination of clinical positioning and ease of use.

Age (approx.): 1 - 9 years
Maximum user weight: 45 kg
Height (with Mini Kit): 580 - 1380 mm (Prone), 480 - 1380 mm (Supine)
Body height (without Mini Kit): 800 - 1380 mm (Prone), 700 - 1380 mm (Supine)
Angle range (support surface): 5° - 90°
Chest width (min - max): 175 - 305 mm
Hip width (min - max): 175 - 305 mm
Knee block width (center to center): 130 - 210 mm
Leg abduction (min - max): 0° - 30°
Footplate angle (dorsiflexion - plantar flexion): 10° - 25° (Prone), 25° - 10° (Supine)
Stand height (floor to upper edge of the upper pads): 1080 mm (upright)
Height of the stand (floor to support board): 810 mm (horizontal)
Height from the footrest to the top edge of the chest plate: 580 - 1000 mm
Footprint of the base (width x length): 645 x 890 mm

FiNiFuchs does not sell any products!
Please contact the manufacturer or distributor.
