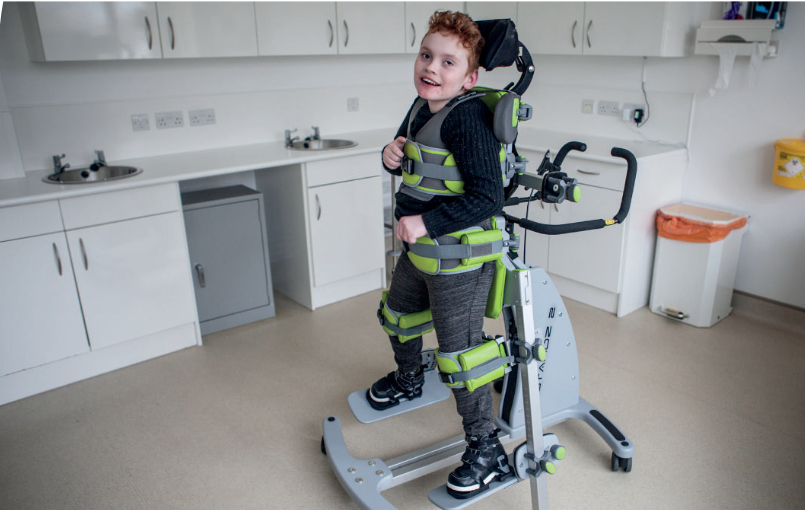

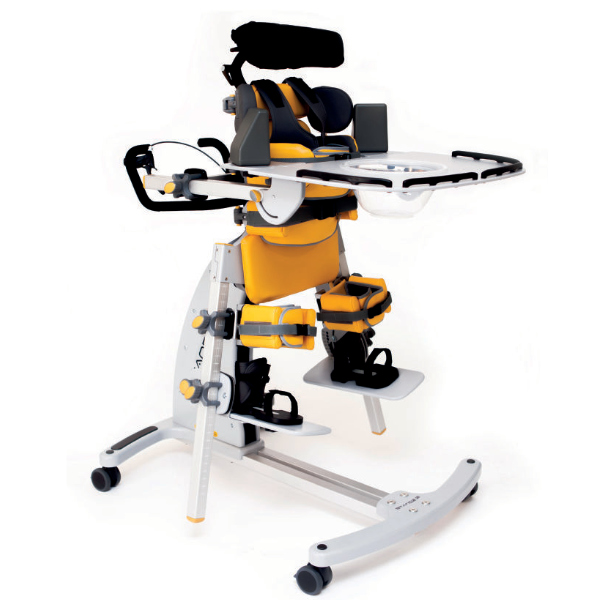

Standz 2

by Jenx

A versatile standing system that allows for both lying and upright standing, offering abducted or neutral leg positioning for children aged 5 to 14 years.

Inspired by the clinical benefits of abducted standing and developed in collaboration with therapists and caregivers worldwide, it guarantees the perfect combination of clinical positioning and ease of use.

Age (approx.): 5 - 14 years
Maximum user weight: 70 kg
Body height (min - max): 990 - 1600 mm
Angle range (support surface): 0° - 90°
Shoulder width (min - max): 200 - 290 mm
Chest width (min - max): 220 - 360 mm
Hip width (min - max): 250 - 370 mm
Knee block width (center to center) - neutral position: 220 mm
Leg abduction (min - max): 0° - 30°
Footplate angle (dorsiflexion - plantar flexion): 15° - 15°
Stand height (floor to upper edge of upper pads) - upright: 1130 mm (Prone), 1230 mm (Supine)
Height of the stand (floor to support board) - horizontal: 900 mm
Height from the footrest to the top edge of the chest plate (min - max): 820 - 1160 mm
Footprint of the base (width x length): 760 x 1070 mm
