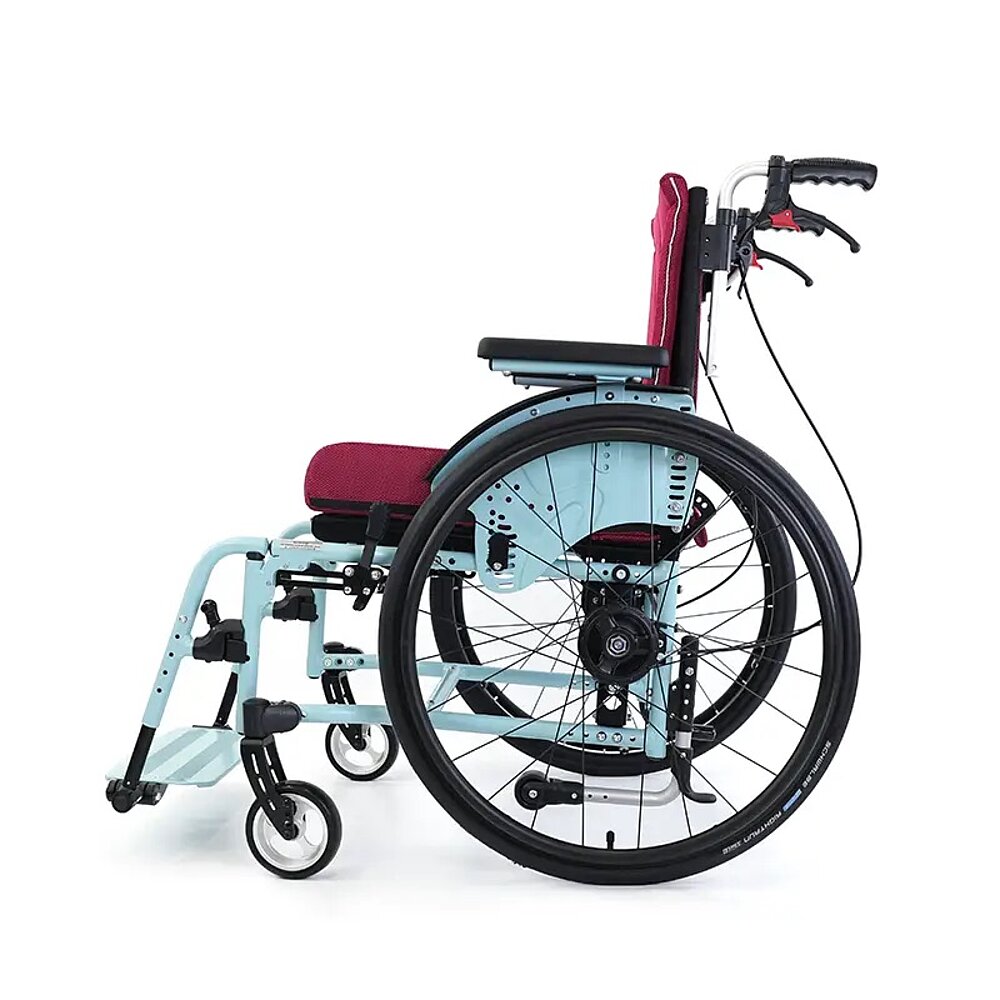

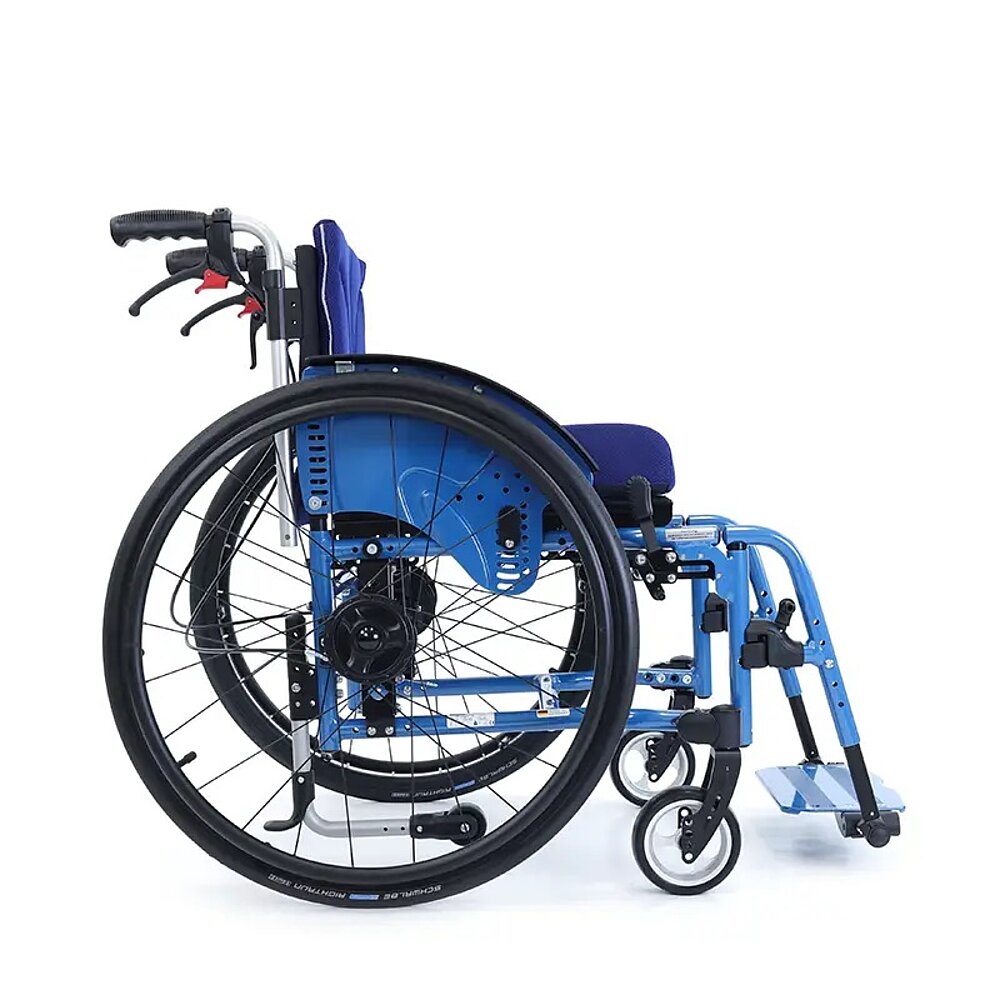

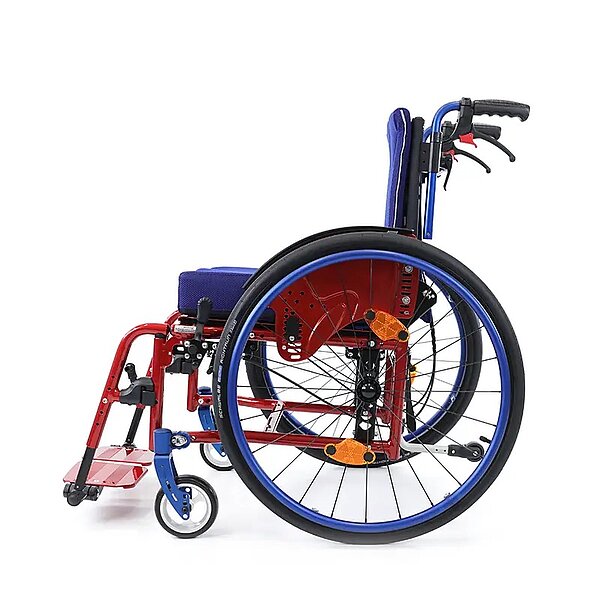

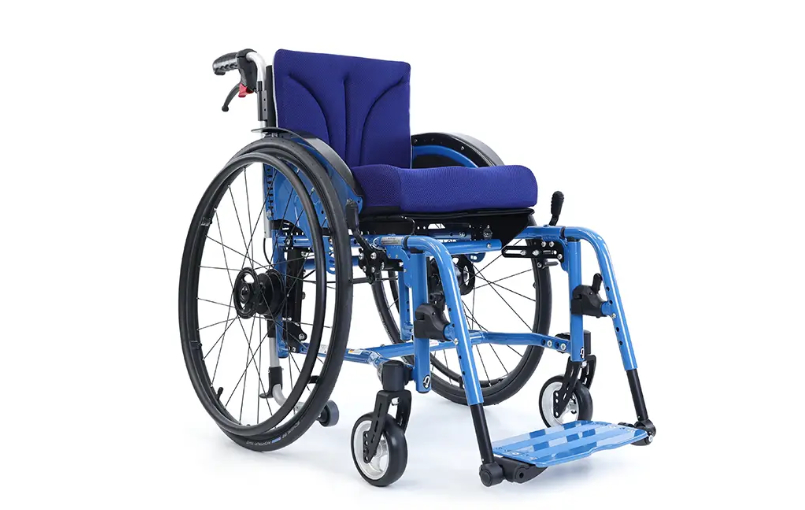

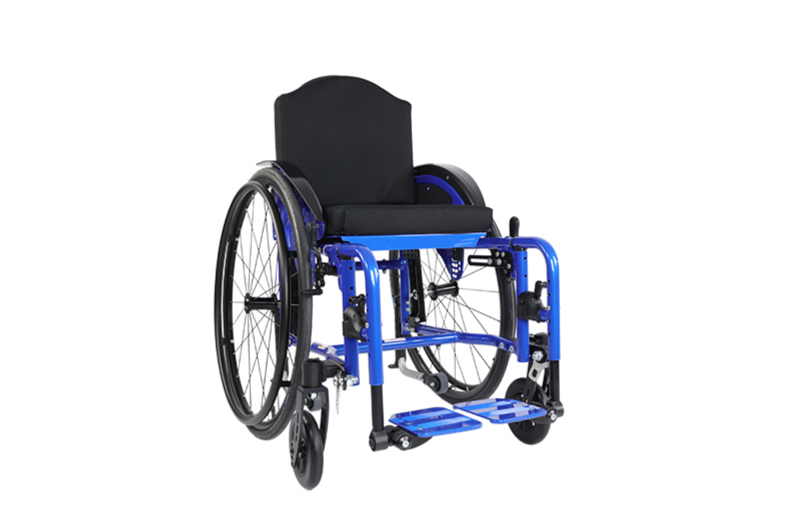

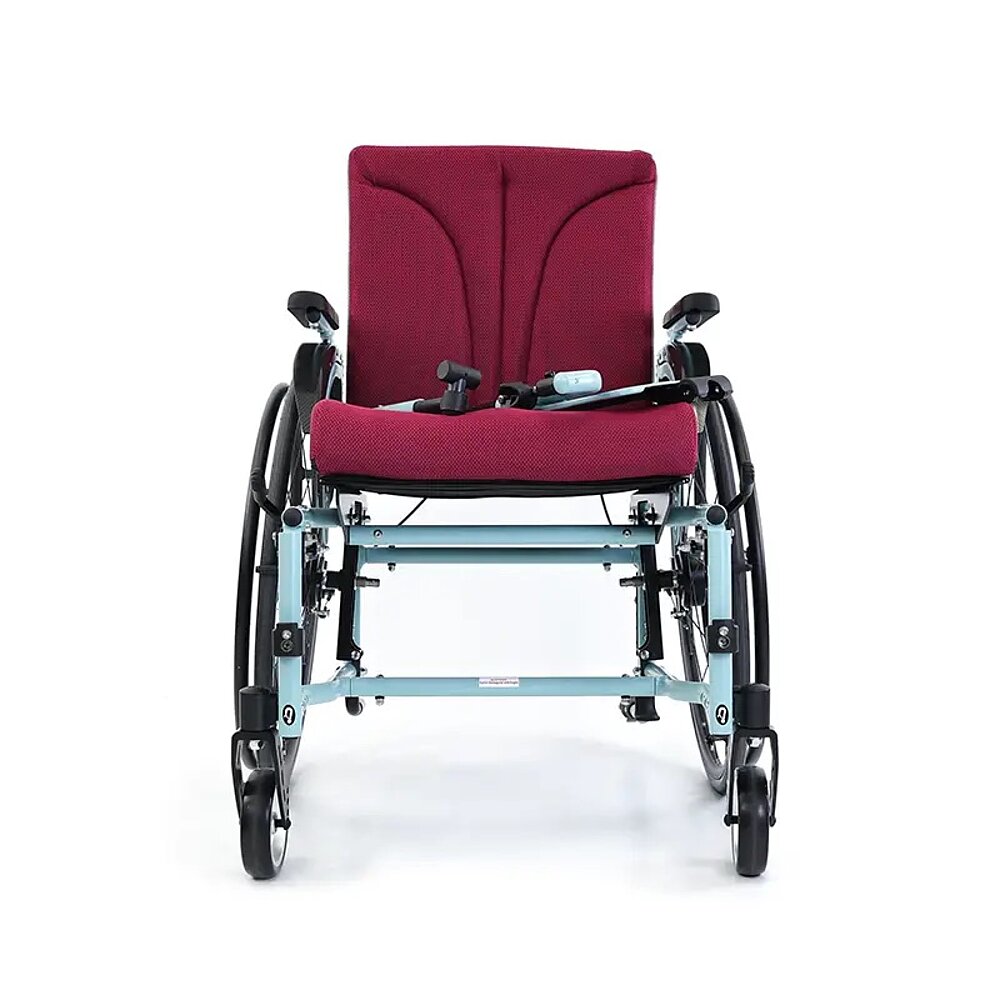

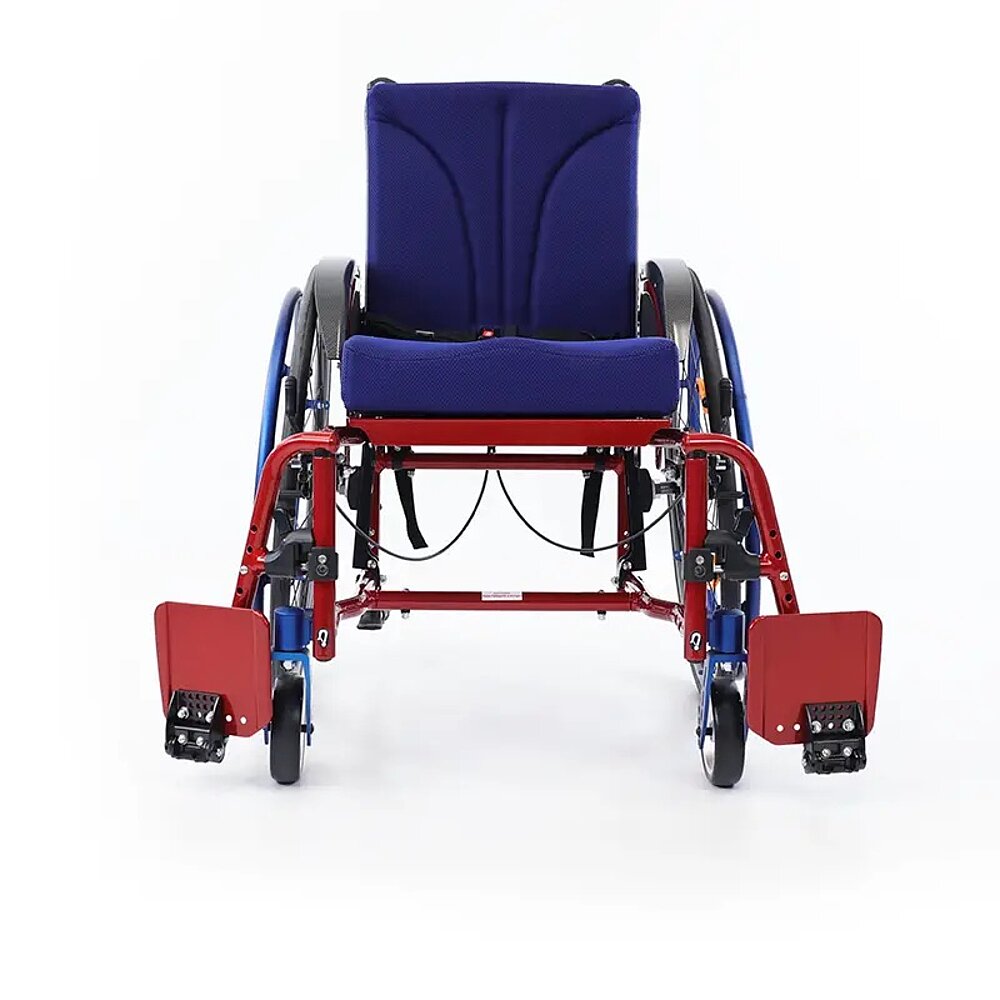

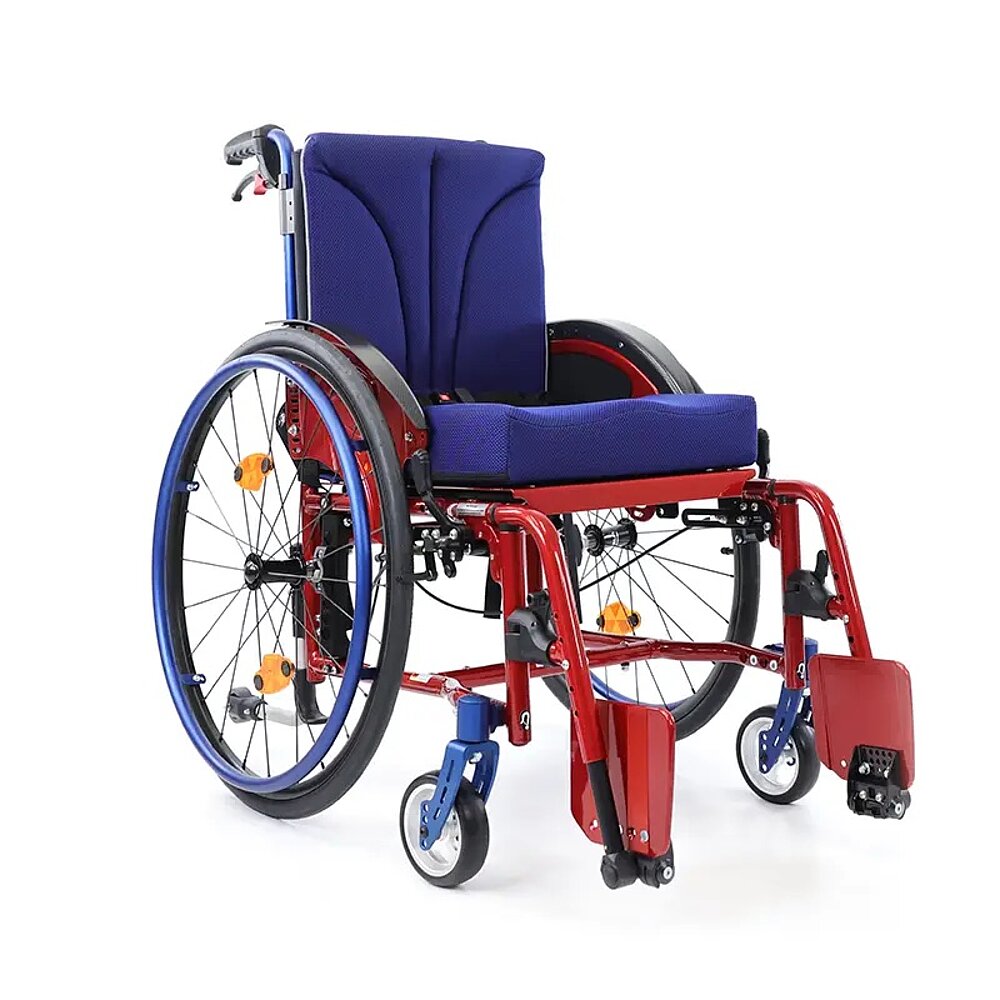

Vector BSA

by SORG

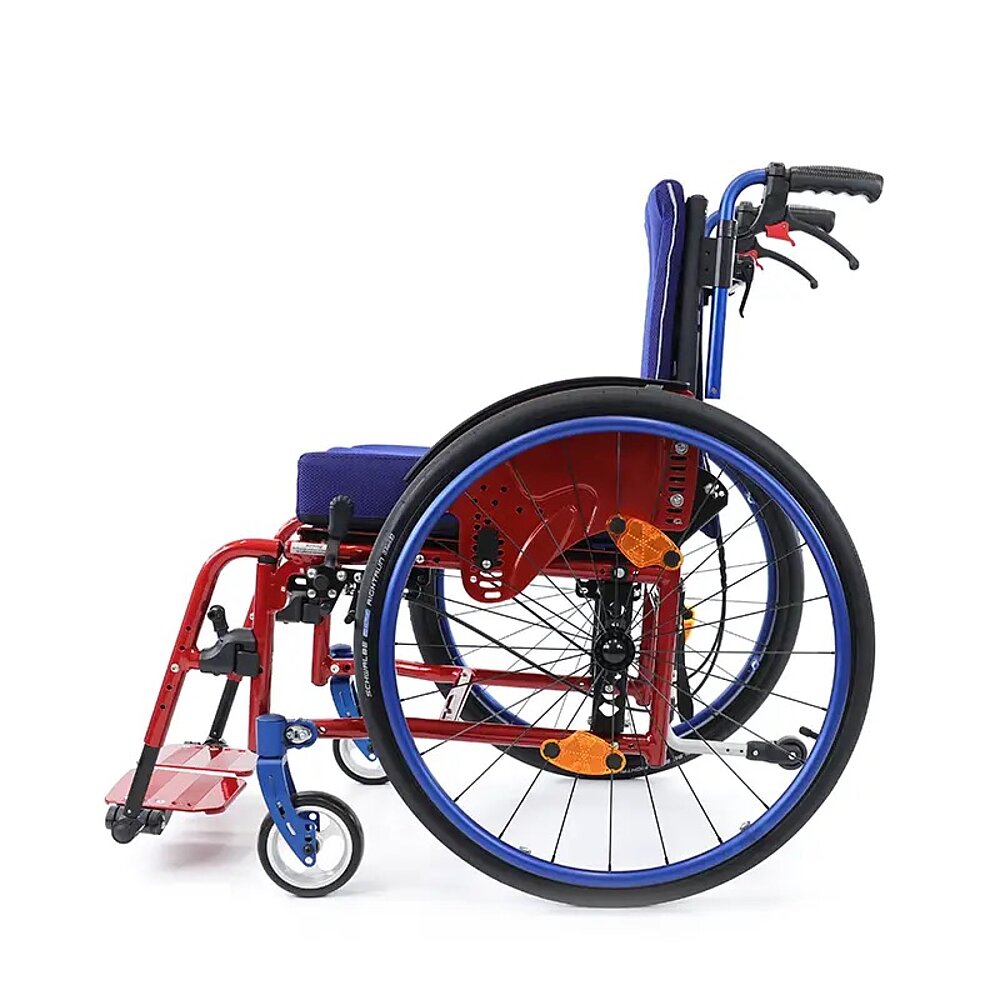

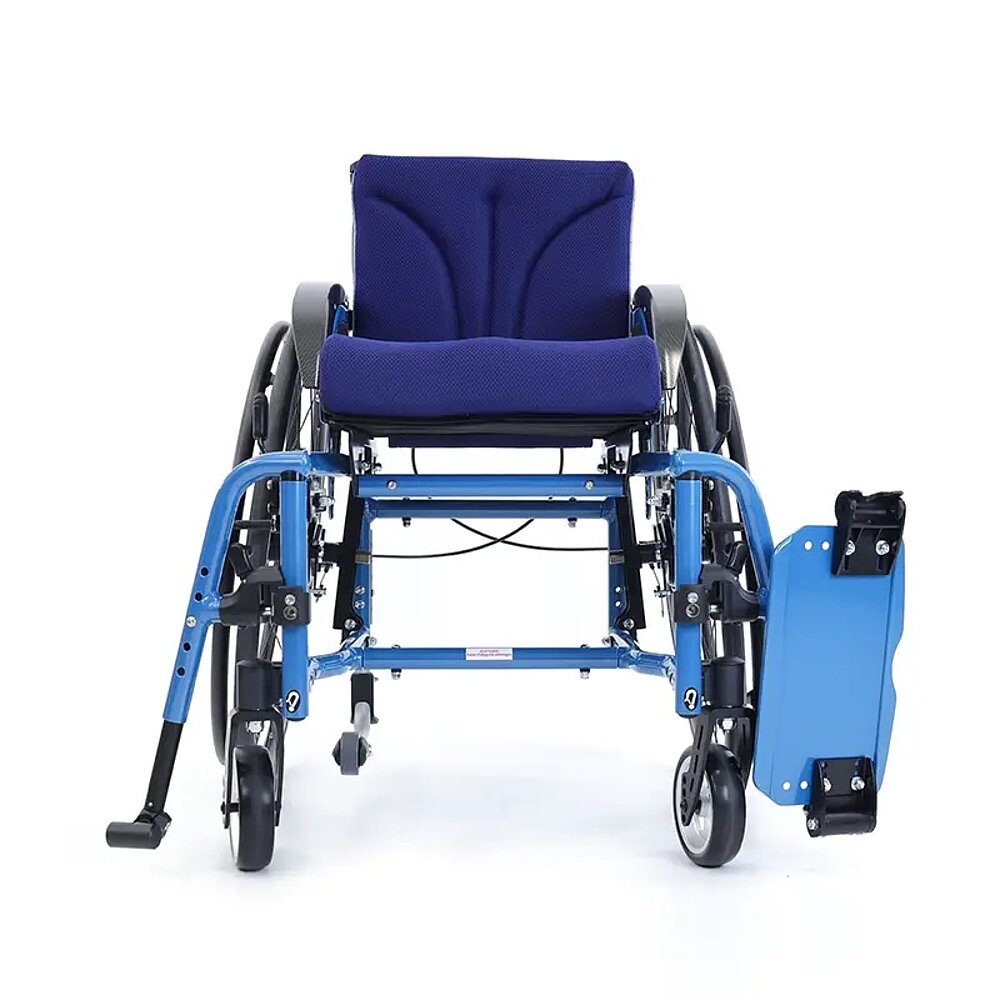

The Vector BSA is a versatile rigid frame wheelchair with swing-away legrests. With an abducted frame, it offers additional flexibility. The Vector BSA can be finely adjusted to meet the individual needs of the user, regardless of the type of chassis. It also offers a wide range of features.

The all-rounder of the SORG wheelchair family in BSA version with swing-away leg supports
Customized
Optimum adaptation to the needs of its users from childhood to adulthood
Abducted or straight frame
Individual adjustment of the seat unit independently of the chassis
Stable and child-friendly handling with minimal effort
Growing function in three dimensions
Variably adjustable wheel camber
Countless color, fabric and equipment variants
Seat width: 30-46 cm (+ 4 cm)
Seat depth: 34-50 cm (+ 4 cm)
Backrest height: 30-50 cm (+ 5 cm)
Lower leg length: up to 51 cm
Maximum load: 120 kg
Drive wheel sizes: 22"-26"
Steering wheel sizes: 4", 5", 5.5", 6", 7"
Front seat height: 39.5-55.5 cm (reduction possible with Hemi adapter)
Rear seat height: 34-56 cm
Camber: 0°, 2°, 5°, 8°
Back angle: 80°-120
Frame tube diameter: Ø 24 mm
